Kolb

PS03

Cleaning unit for stencils and solder carriers
1 chamber cascade tank system

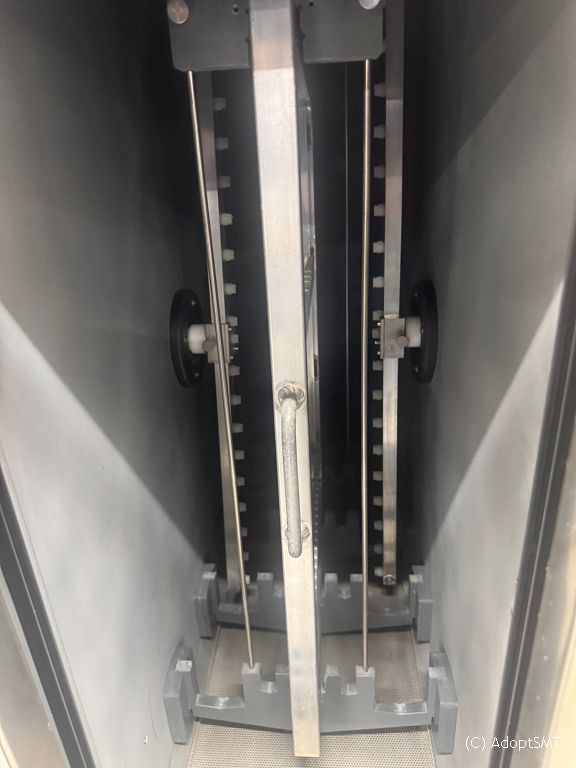

Loading via lock chamber, step holder in the process chamber
3 step process: cleaning, rinsing, hot air drying
Cleaning by spray rotors
Cycle time approx. 13 min
Tank volume approx. 75 l
Filtration 5 stages
Full flow coarse filter < 2 mm
Cascade sediment filter stage tank 1L and tank 2R
Fine filter cartridges 25 µm and 5 µm
Integrated pump out unit

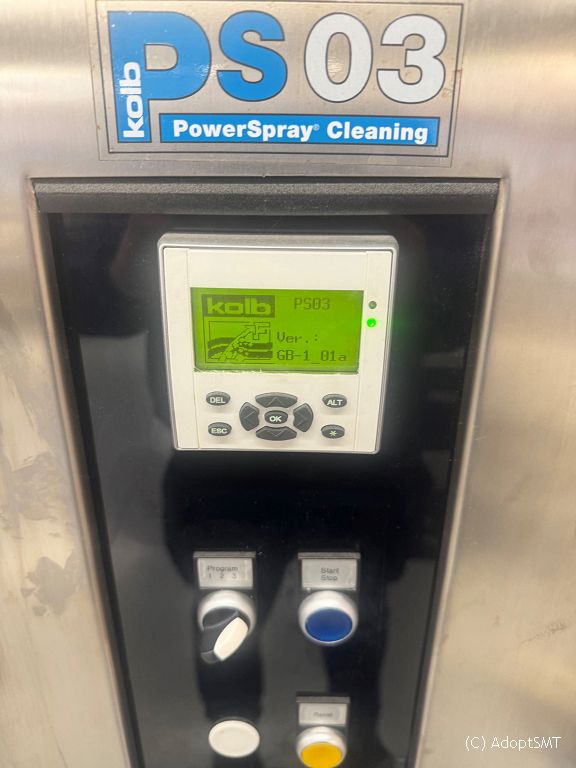

PLC control with graphic display
Program selector switch 3 steps
Weight approx. 350 kg
