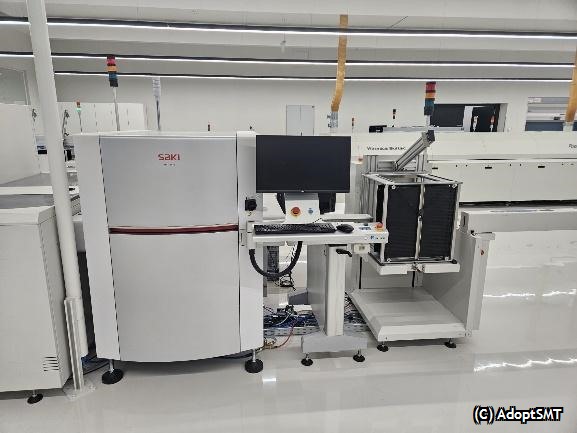

Saki AOI cell, consisting of:

SAKI BF-3Di-ZS2-18 inline 3D and 2D AOI inspection system
• 2D full colour inspection, 4 level 2D lighting
• 3D dual path measurement, 4 LCOS projectors
• Automatic height compensation, 100% 3D reconstruction
• 2D side cameras optional
• Y axis: dual side syncro drive
• QDP self diagnostics
• Speed: 5700 mm/sec (18 ppm)
• Max. PCB size: 686 x 870 mm
• Max. component height: 40 mm, max. 3D height measurement: 20 mm
• SMEMA height: 880 to 965 mm
• Resolution: 12 µm, FOV 41.5 x 41.5, camera currently 18 µm
• Inspection scope: missing components, position detection, tombstoning, reversed components, polarity, bridging, missing or insufficient solder volume, unsoldered or lifted pins, THT pin solder joints

NUTEK NTM 710UL single magazine line unloader incl. pusher conveyor

NUTEK NTM 720UXL dual magazine line unloader

Accessories and software:
◦ SAKI BF2-Editor-LZ offline programming station, offline programming and debugging, USB dongle, licence for third party PC
◦ SAKI SSP-OP-L Saki self programming data format, ODB++ and OPM
◦ SAKI BF2-Monitor-LZ offline repair station with evaluation software, licence for third party PC
◦ SAKI BF2-Logger-LZ programmable, software version independent data output interface for SPC
◦ PCB backup support bar (flexible bar type)
