Ersa

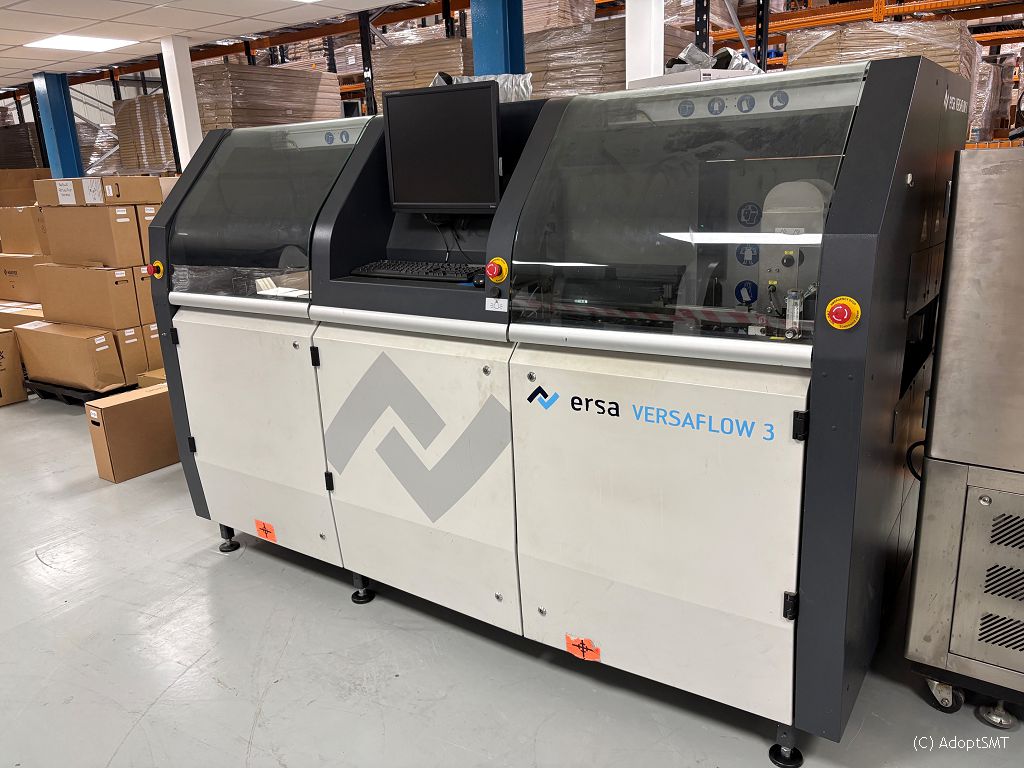

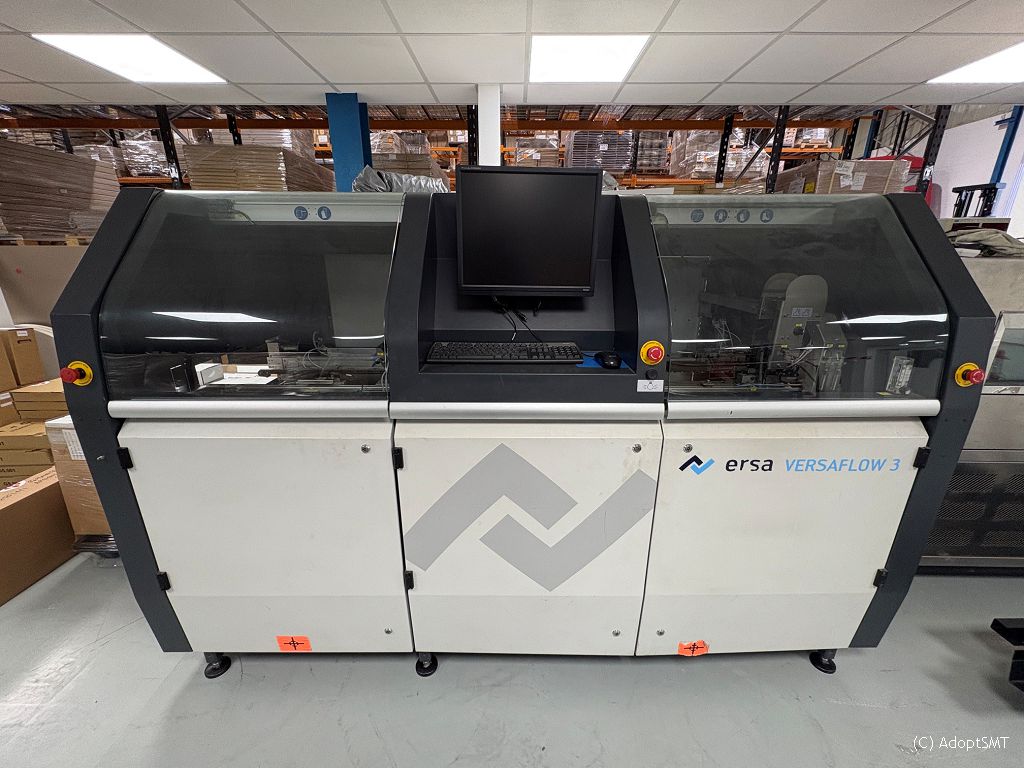

Versaflow 3-45

Selective Soldering
Inline selective soldering system

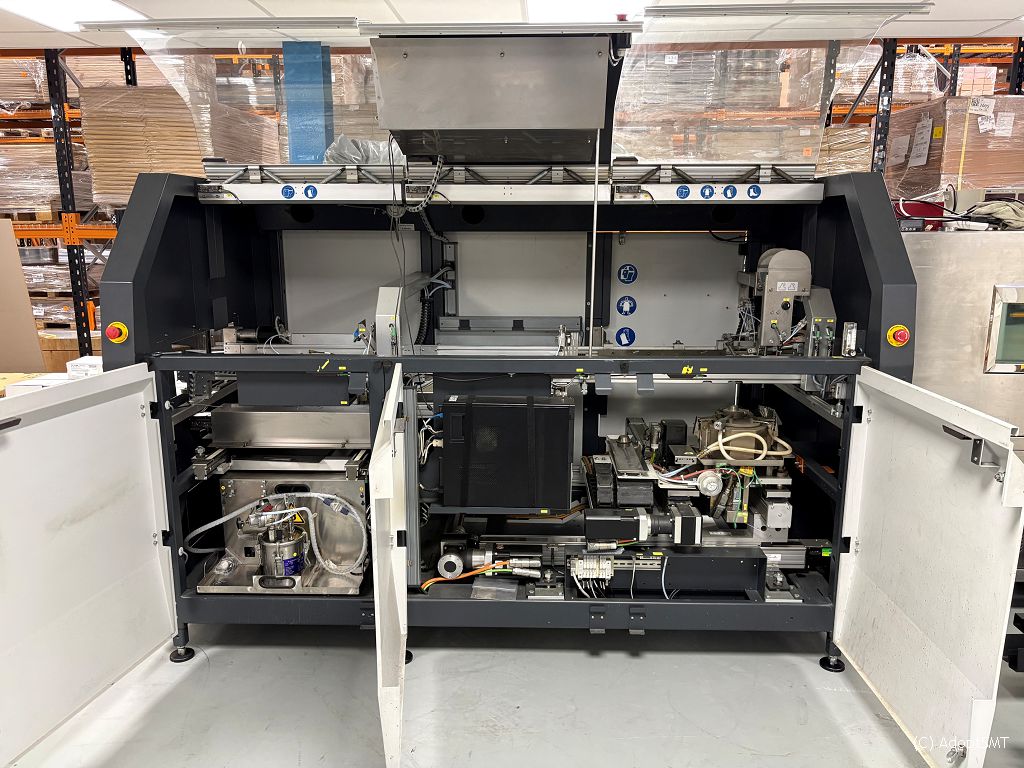

Modular platform
Flux module
Drop Jet fluxer
Preheating module
IR preheating
Soldering module

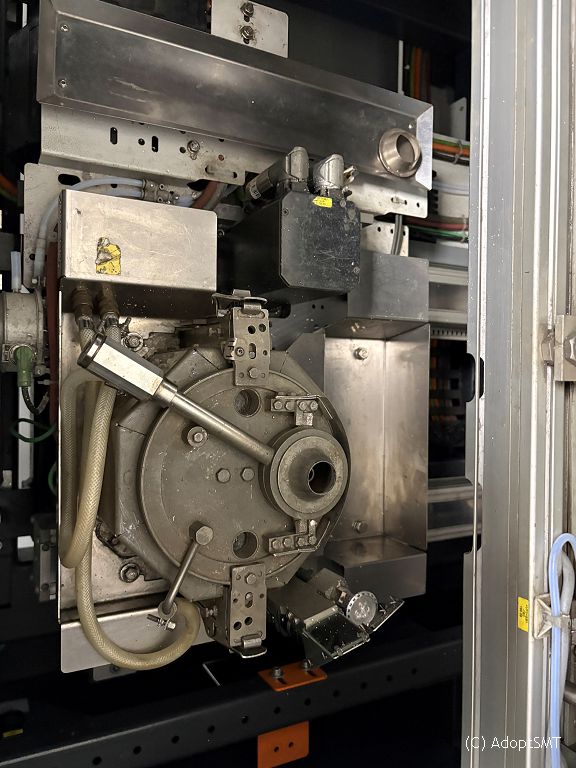

Electromagnetic solder pot
Mini wave soldering
Segmented pin chain conveyor system
PCB width 63.5 to 508 mm
PCB length 127 to 508 mm
Maximum component height top side 120 mm
Maximum component height bottom side 60 mm
Maximum PCB weight 8 kg
Nitrogen operation
Parallel process for fluxing preheating and soldering
Machine dimensions 2450 x 1730 x 1620 mm
Weight approx. 1100 kg without solder
Operation manual included
