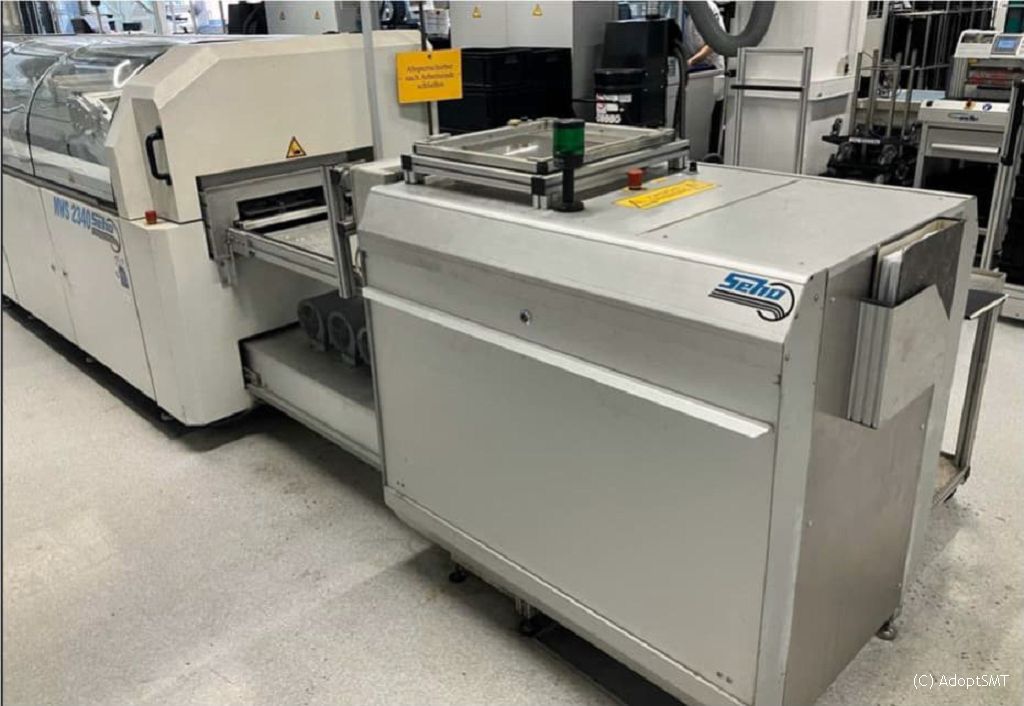

Seho

2340 LRT

Wave Soldering
Commissioned in 2006 for lead free process
Full tunnel wave soldering system
Pallet conveyor width 400 mm
External flux module

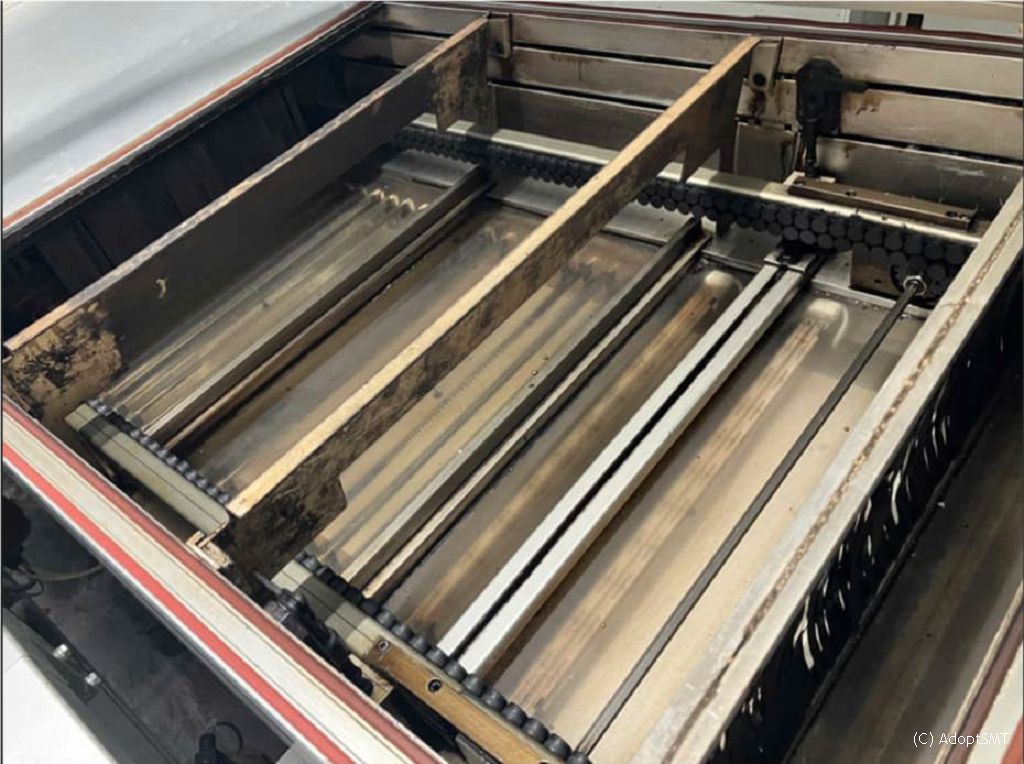

Preheating length 2400 mm
7 preheating zones
Infrared preheating
Convection preheating
Quartz preheating
Solder module with 2 nozzle inserts
LW 7 hole nozzle
LW 5 hole nozzle
Cooling module with integrated chiller
Additional cooling tunnel in return conveyor
Nitrogen operation
SEHO O2 sensor for residual oxygen monitoring
Lowering station at outfeed
90 degree transfer station at infeed
