SMT

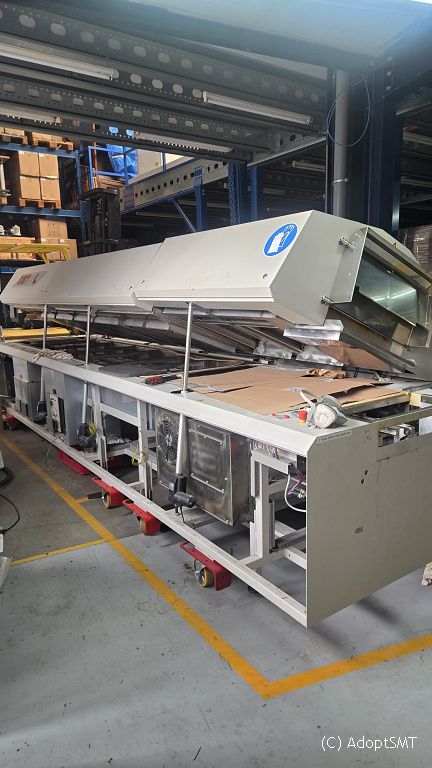

Quattropeak L N2

Reflow soldering system L N2
4 preheating zones
4 peak zones
2 cooling zones
100 percent forced convection
Heated process length 3680 mm
Active convection length 3142.5 mm
Cooling zone length 1752 mm
Process temperature preheating zone max 300 degree Celsius
Process temperature peak zone max 350 degree Celsius
Chain conveyor system
Working width 60 to 510 mm
Pass through height top bottom 30 30 mm
Conveyor speed 0.2 to 3.0 m per minute
Maximum load 3 kg per meter
Infeed height 900 plus minus 20 mm
Pass through direction left right
Nitrogen operation
Exhaust connection 1 x 200 mm
CDIAS control with Reflow Tool 7
