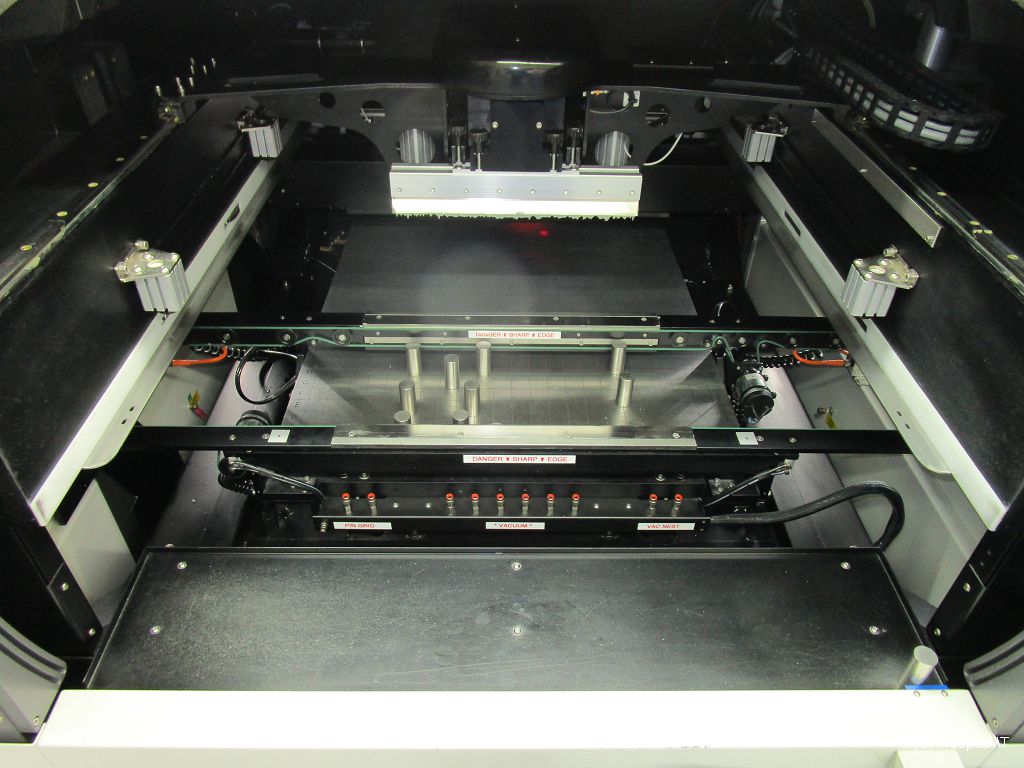

Inline screen printer Tucano USC
Automatic transport width adjustment
Automatic stencil loading
Mechanical PCB stopper

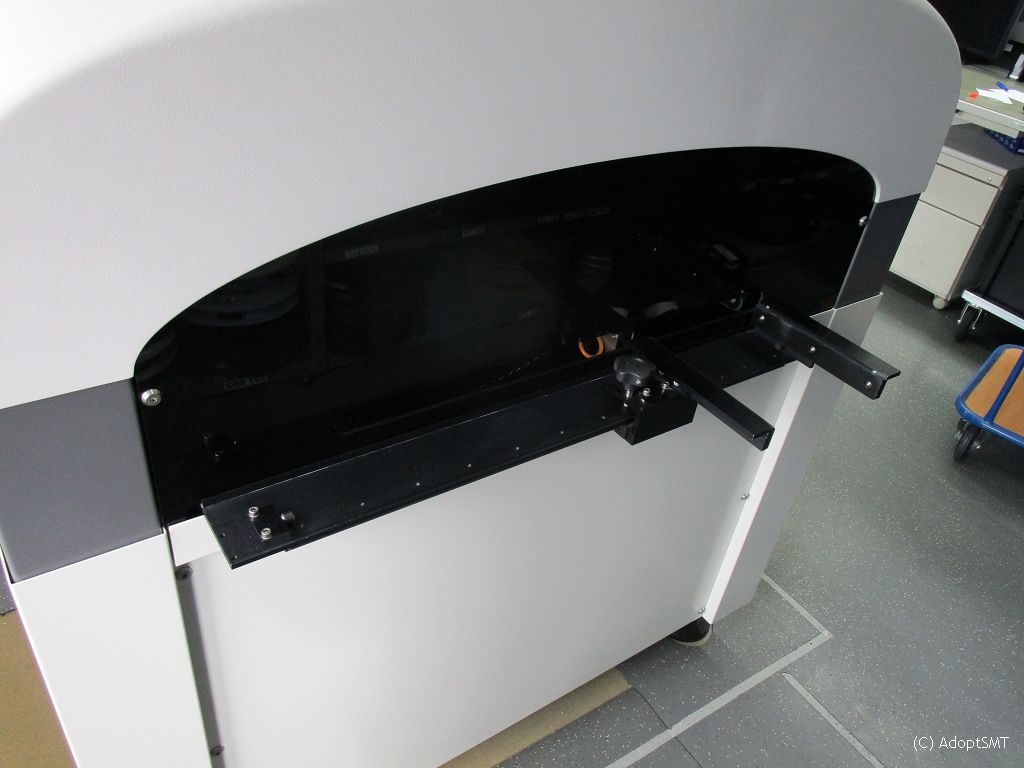

PCB support rails on the left side for manual PCB loading and unloading
Manual width adjustment via knurled screw

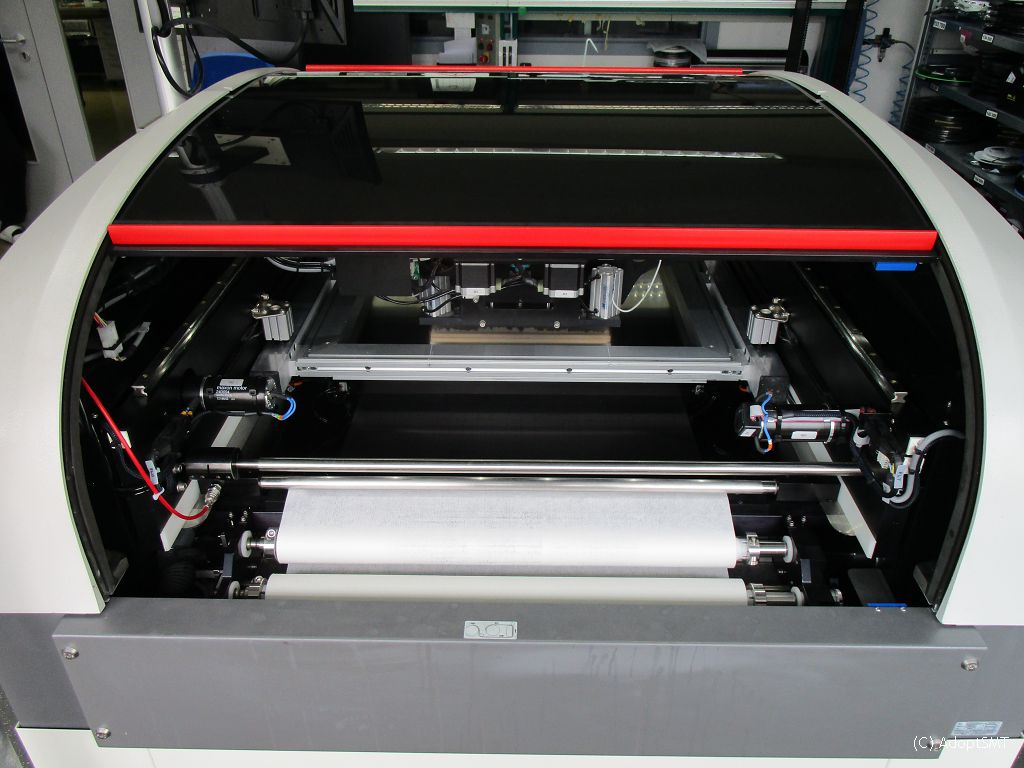

Automatic underside cleaning
Stencil frame holder configured for 29 inch frames

Automatic dual camera vision alignment
Programmable LED illumination red green blue
Process alignment capability ±25 µm at 6 Sigma
Machine alignment capability ±12.5 µm at 6 Sigma

Print speed 1 to 250 mm per second
Printing pressure 0 to 20 kg
Snap off speed 0.1 to 20 mm per second
Cycle time approx 10 seconds plus print time

PCB size 40 x 40 mm up to 650 x 600 mm
Maximum print area 600 x 580 mm
PCB thickness 0.2 to 5 mm
Maximum PCB weight 3 kg
Maximum underside component clearance 25 mm

Transport height 900 to 970 mm
Programmable transport direction left to right
Polyurethane conveyor belt 3 mm O section
PCB clamping via pull down clamps

Dual squeegee system metal or polyurethane
Squeegee width 150 to 608 mm
Self leveling squeegees
