Koh young

ZENITH ALPHA HS L-size

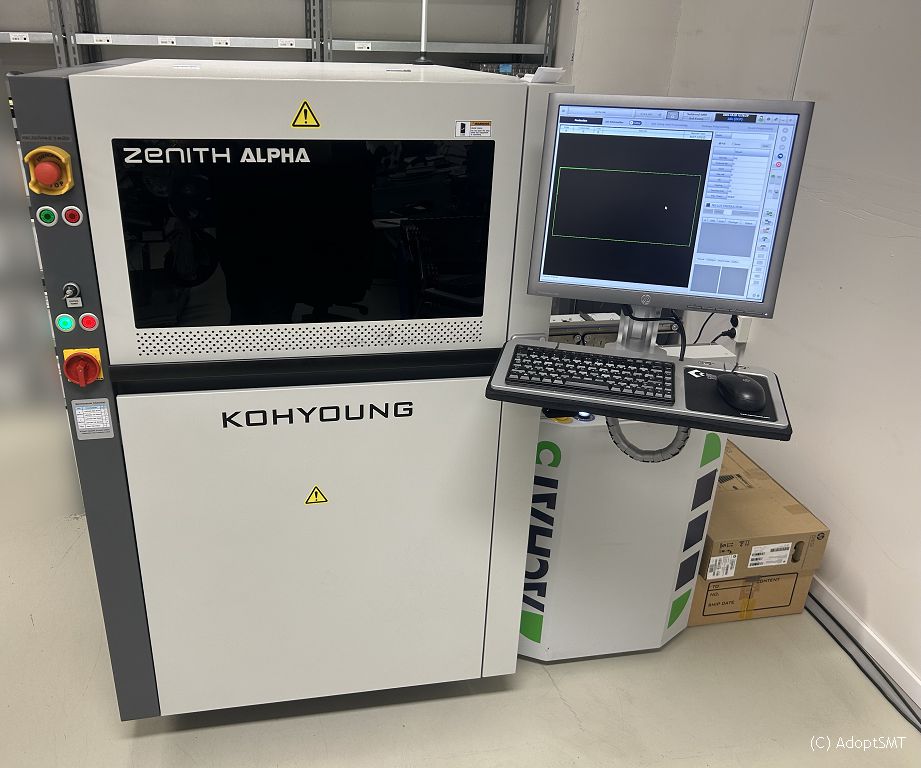

Koh Young ZENITH ALPHA HS+ L-Size
3D AOI inspection system
Single-lane L-platform
8 MP camera module
Measurement resolution 15 µm
Projection system 5W (4-way grating + 1-way DLP)
IR-RGB LED illumination
Operating system Windows 10 Enterprise 64 bit
Conveyor height 870–950 mm
Transport direction L→R
Front-fix timing belt ESD conveyor
Max PCB size 490 × 510 mm
Min PCB size 50 × 50 mm
Board thickness 0.4–5 mm
ESD protection system Standard + Extended Safety Option
Review station AOI including PC, monitor, keypad, DB Manager software with SQL Server license and AOI review software
