Seho

8140 PCS

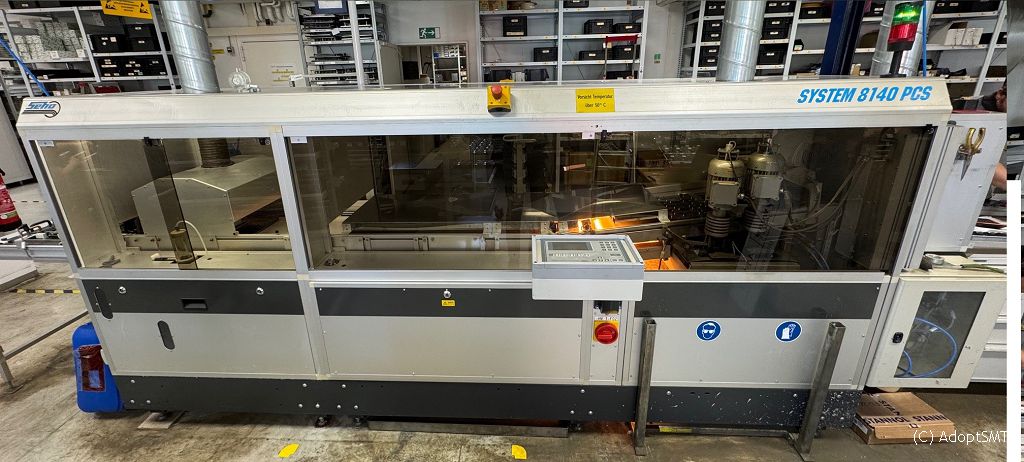

SEHO 8140-PCS
Wave soldering system with frame transport
Transport direction L→R, adjustable angle 6–8°
Stainless-steel foam fluxer replaced by ATS spray fluxer with exhaust hood
Flux dosing with motor-driven pump
3 IR preheat zones (3 kW each, 700 mm length)
Additional quartz preheat module 5 kW, 400 mm
Reflection tunnel 1400 mm
Solder module with Delta and EnergyWave45 nozzles
Solder pot 350–400 kg, lead-free coating
N₂ inerting system ALIX-LTII with nitrogen saving function
Solder level control
Exhaust monitoring

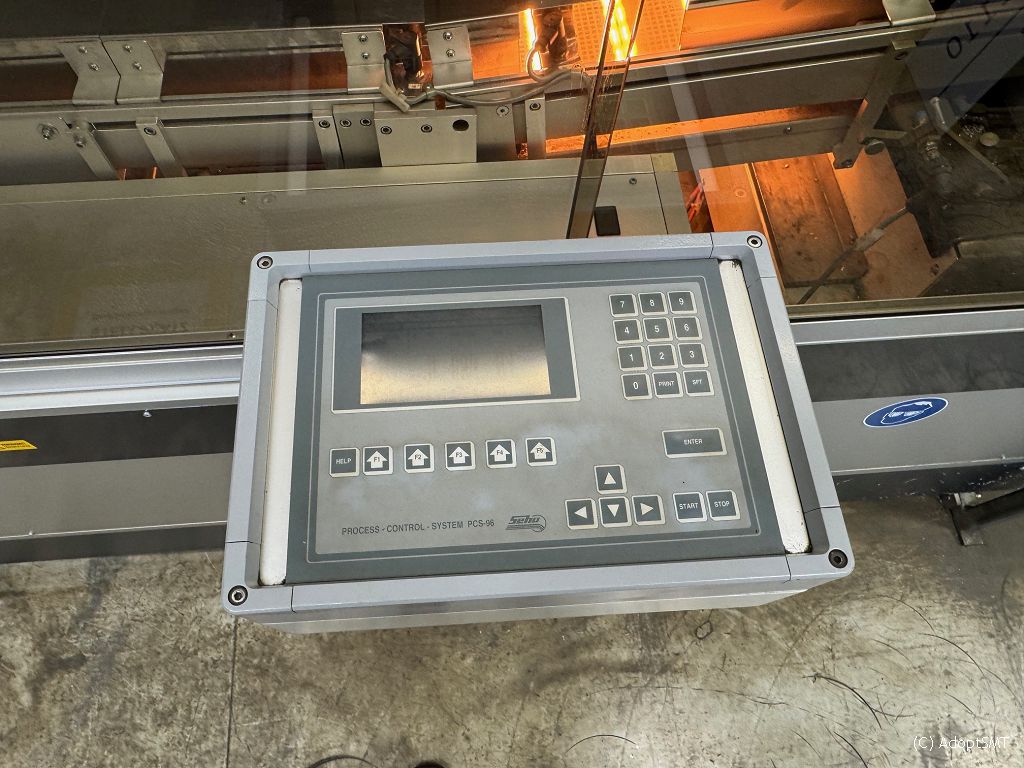

PCS 96 control, 100 programs storable
Universal solder frames, drip tray, cleaning kit, safety gloves, nozzle handle
