Europlacer

iineo 2

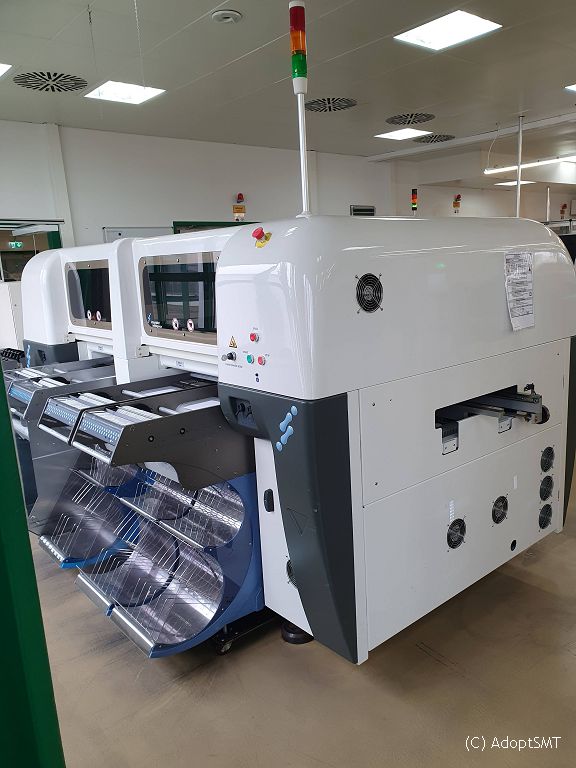

Europlacer iineo2

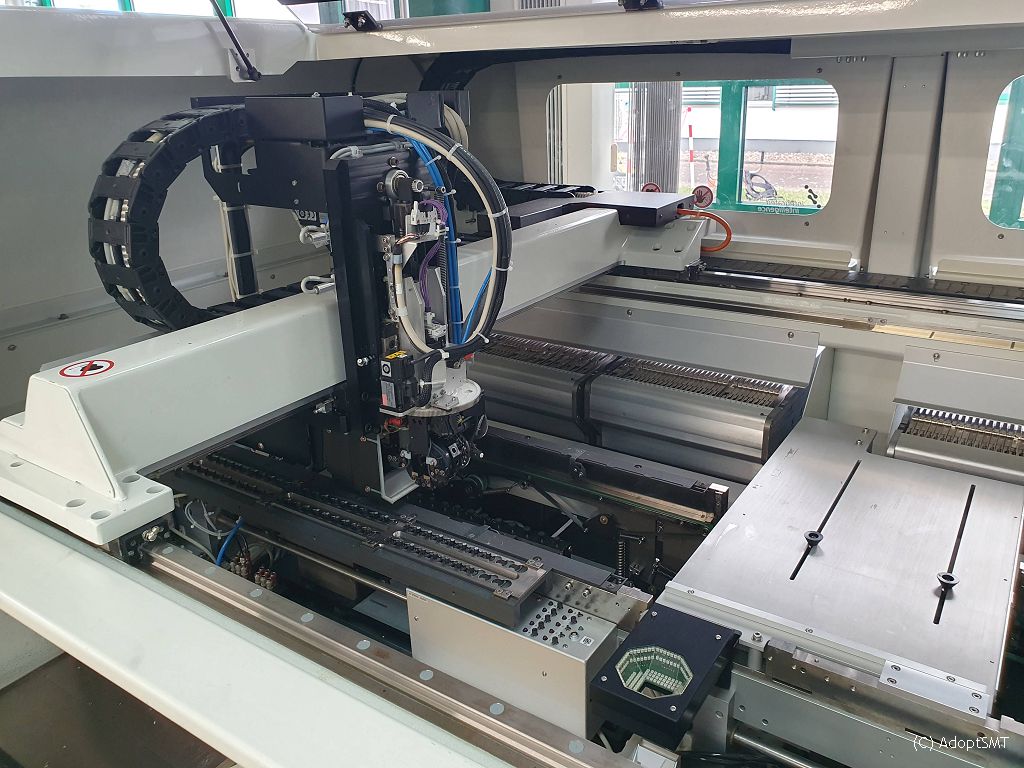

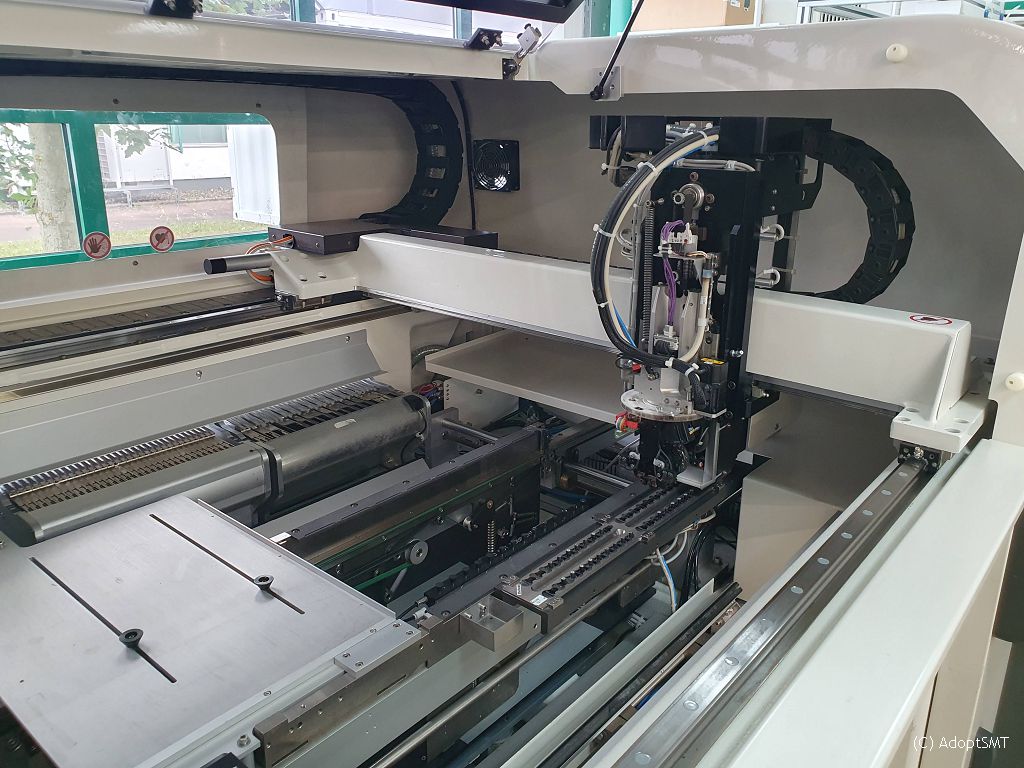

Dual turret placement heads – X/Y linear motors with 8 or 12 smart nozzles
Cycle time approx. 0.137 s → approx. 26,300 cph (IPC approx. 22,030 cph)
Placement accuracy 35 µm (QFP) to 60 µm (Chips) @ 3σ
On the fly digital camera
Feeders for 8–104 mm tapes, sticks, matrix trays
Feeder capacity 264 × 8 mm and 3–4 Jedec matrix trays
PCB length from 60 mm
Maximum PCB size up to 1610 × 600 mm
PCB thickness 0.5–10.0 mm, maximum weight 3 kg (10 kg optional)
Underside clearance 25 mm
Clamping full edge with fiducial correction
Board positioning +3 mm above / –5 mm below transport line
Transport height adjustable 890–975 mm
SMEMA interface
Transport direction L→R
SW RC5.15
1x 12 Head
1x 8 Head
Dispens unit
2x Gridlock

Available accessories on request
8mm NT feeder – large reels
8mm NT feeder – small reels
12mm feeder
16mm feeder
24mm feeder
32mm feeder
44mm feeder
56mm feeder
72mm feeder
Special feeder 32mm
Special feeder 44mm
Special feeder 88mm
Belt conveyor
Trolley
Special feeder cart
Feeder cart
Trolley feeder units 8mm
Trolley feeder units 12mm
Trolley feeder units 16mm
Trolley feeder units 24mm
