Europlacer

XPii 2

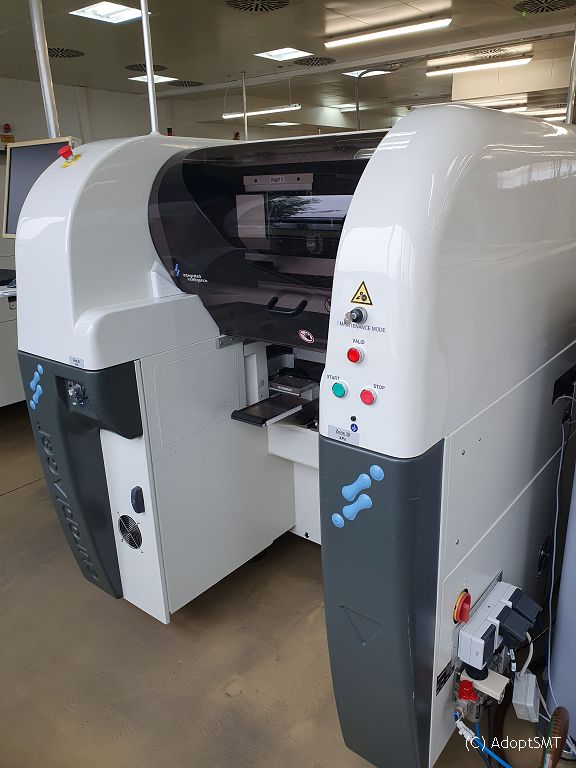

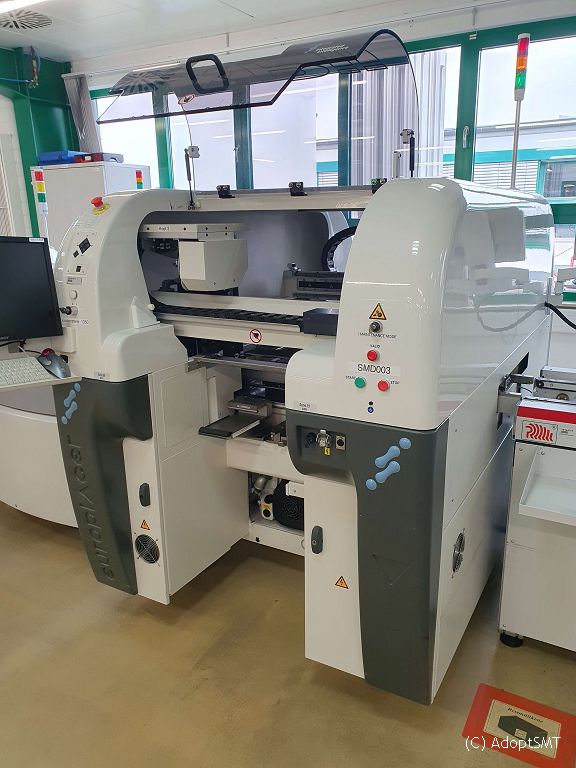

Europlacer Xpii II
2x 12 Head

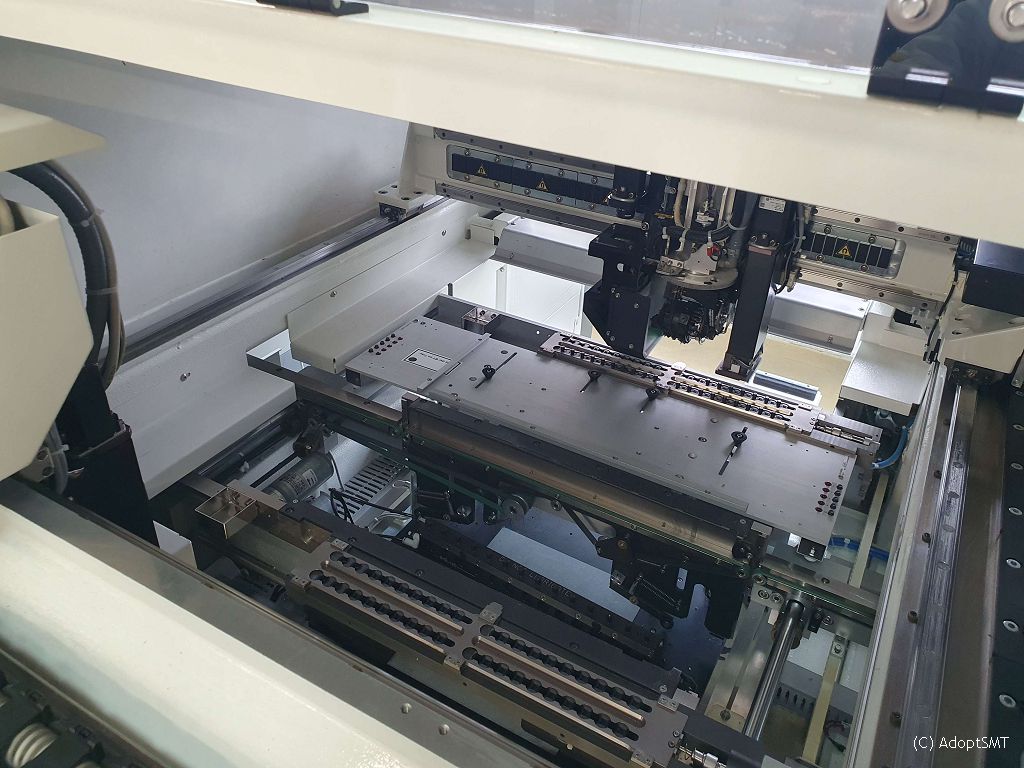

Dual turret heads – X/Y linear motors with 8 pick-ups
2 × 40 position smart nozzle tool magazines
Cycle time 0.15 s → max. 23,800 cph (IPC standard: 17,400 cph)
Placement accuracy 35 µm (QFP), 60 µm (Chips) @ 3σ
On-the-fly digital camera
Feeders for 8–88 mm tapes, sticks, matrix trays
Feeder capacity 92 × 8 mm
PCB length 60–500 mm
PCB width 60–460 mm (up to 405 mm with tray sequencer)
PCB thickness 0.5–10.0 mm, max. weight 3 kg
Underside clearance 25 mm
Clamping: full-edge with fiducial correction
Board positioning +3 mm above / –5 mm below
Adjustable height 890–975 mm
SMEMA interface
Transport direction L→R
Gridlock
SW RC5.15
