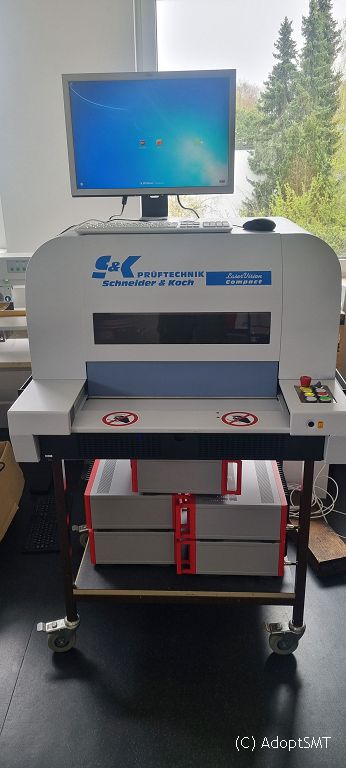

Schneider & Koch

Laser Vision compact

Fully automatic: Optical inspection for SMD / THT / solder joints
High-resolution camera system with telecentric optics
3D laser triangulation for height measurement
Closed-loop defect verification & SPC integration
Inline conveyor system with SMEMA interface
Automatic PCB alignment and fiducial recognition
Flexible inspection: top-side, bottom-side, single or double-sided
Illuminated inspection area, optimized lighting (RGB / IR)
Intuitive Windows HMI, defect images, logs, barcode & traceability
Complete defect classification and repair station interface
Power supply: 3-phase, approx. 2–5 kW, compact footprint
WIN7 Prof, SW Version: 9.20.920
