Asys

LLB 01

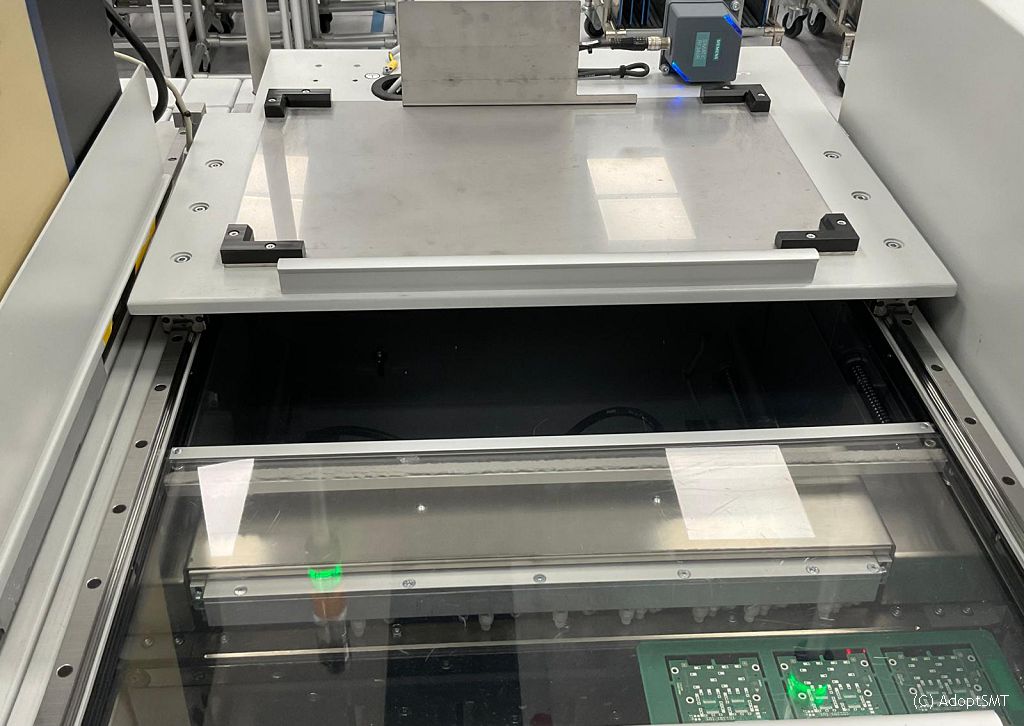

PCB Destacker & Buffer VEGO Dynamic
Max. transport width: 460 mm
Interface: Siemens, SMEMA
PCB dimensions
Length: 70 – 460 mm
Width: 85 – 460 mm
Thickness: 0.7 – 4.5 mm
Component clearance (bypass): ± 40 mm
Max. weight per PCB: 3 kg
Capacity / Stacking
max. stack height: 8 × 60 mm
Max. batch weight: 12 kg
Max. total weight: 60 kg
Edge support (bypass): 3 mm
Edge support (stack): 8 mm
Functions
FIFO principle (correct batch separation)
Loading without stopping production
Separation with clamp mechanism
Electric width adjustment
Color display with graphical user interface
Product parameters adjustable during operation
Product memory function

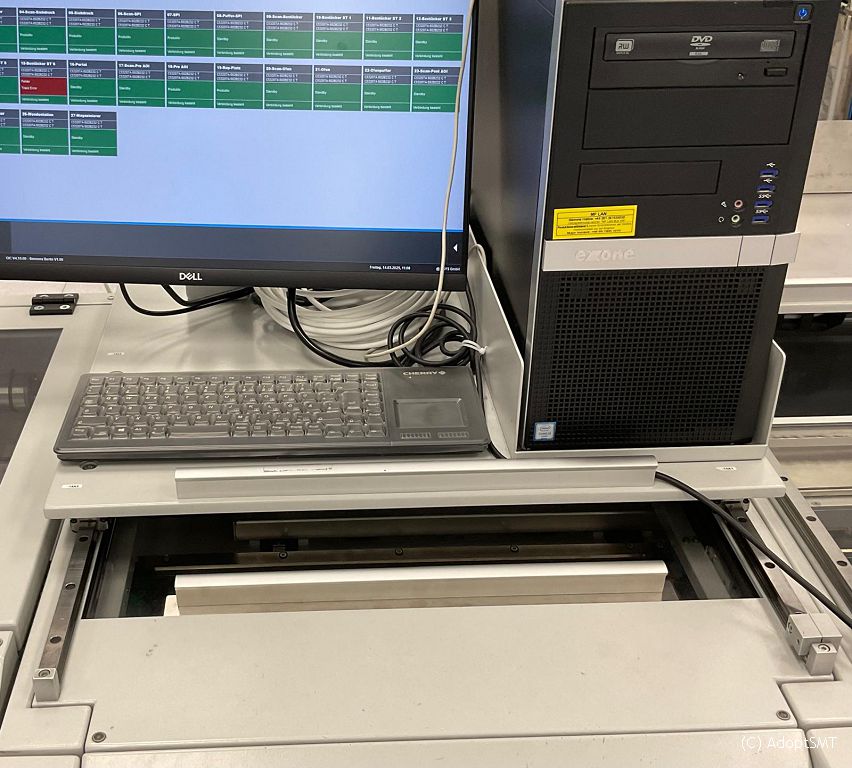

Prepared for Monitor and PC
Transport direction: L->R
