Siplace ASM

Any

SMD Package consist of:

1x

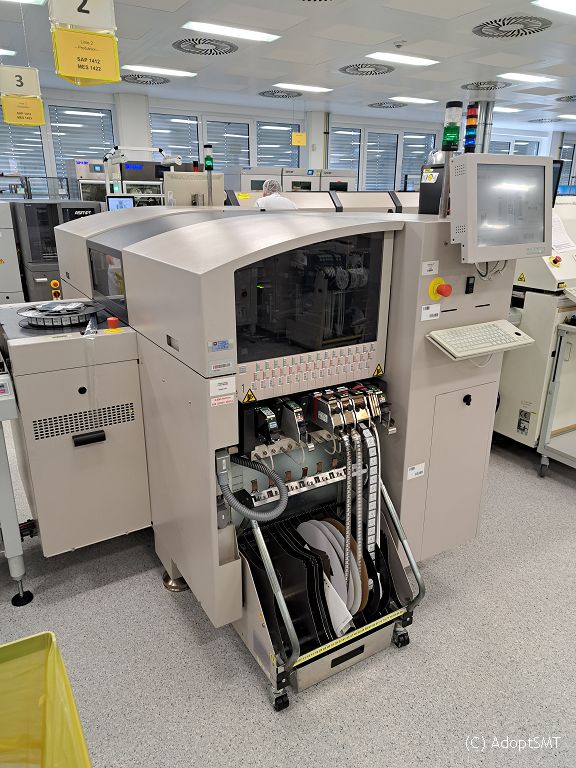

Siplace D2i 2013

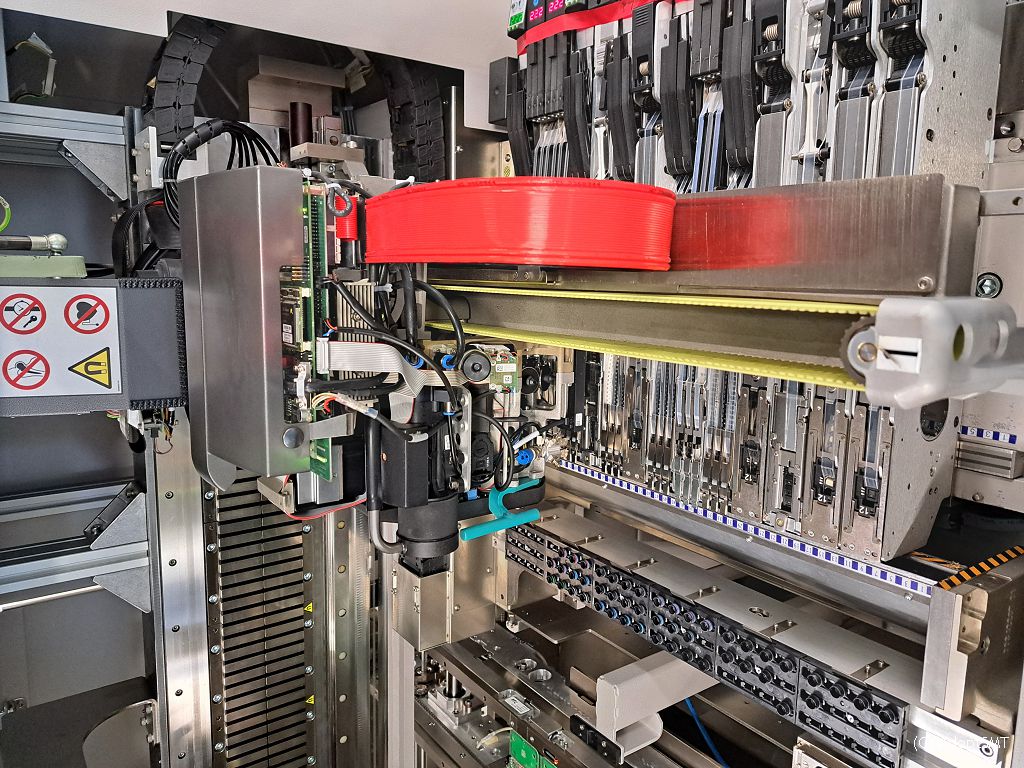

SMD pick & place machine, with 12-nozzle DLM3 head (Collect & Place) on 2 portals.
Max. placement capacity: 27,200 cp/h IPC
Component range 01005 - 27x27mm (depending on camera configuration)
2 CO table positions for max. 90 tracks with 3x8mm S feeders

Currently equipped with
2 x 12 DLM3
Nozzle changer: 1 line (6 magazines for 12 Nozzles each)
2 x BE camera DLM3 head: type 30
2 x BE Sensor 0201

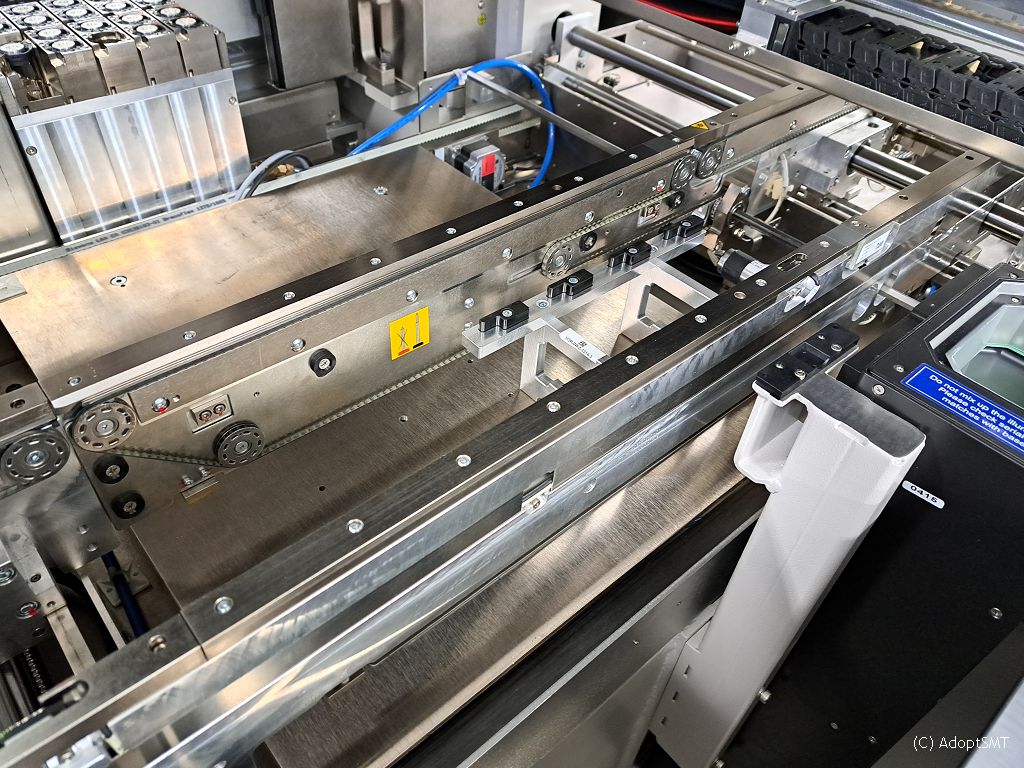

Single PCB transport, width 50x50-460x450mm
L->R
Station software: Win7/605.05, LR software min. Siplace Pro 8.0
incl 2 CO table

1x
Siplace D1 2011
SMD- Placer, with one gantry

max. placement rate: 13.000 cp/h IPC
Components: 0201 - 200 x 125mm (depending on camera configuration)
2 CO-Table with max. 90 Slots of 3x8mm Feeder

1 x 12-nozzle DLM3 Head (Collect & Place) and
1 x Single Head (Pick und Place)
Nozzle Changer: fot TH + DLM head
Component-Cam: DLM3 Kopf: Typ 29
Stationary camera Pick & Place Modul / SHK: Typ 33
Single conveyer, PCB-Dimensions: 50x50-460x450mm,
L->R
Station software: Win7/605.05, LR software min. Siplace Pro 8.0
Incl. 2 x CO-Table and one tray carrier (JEDEC)
